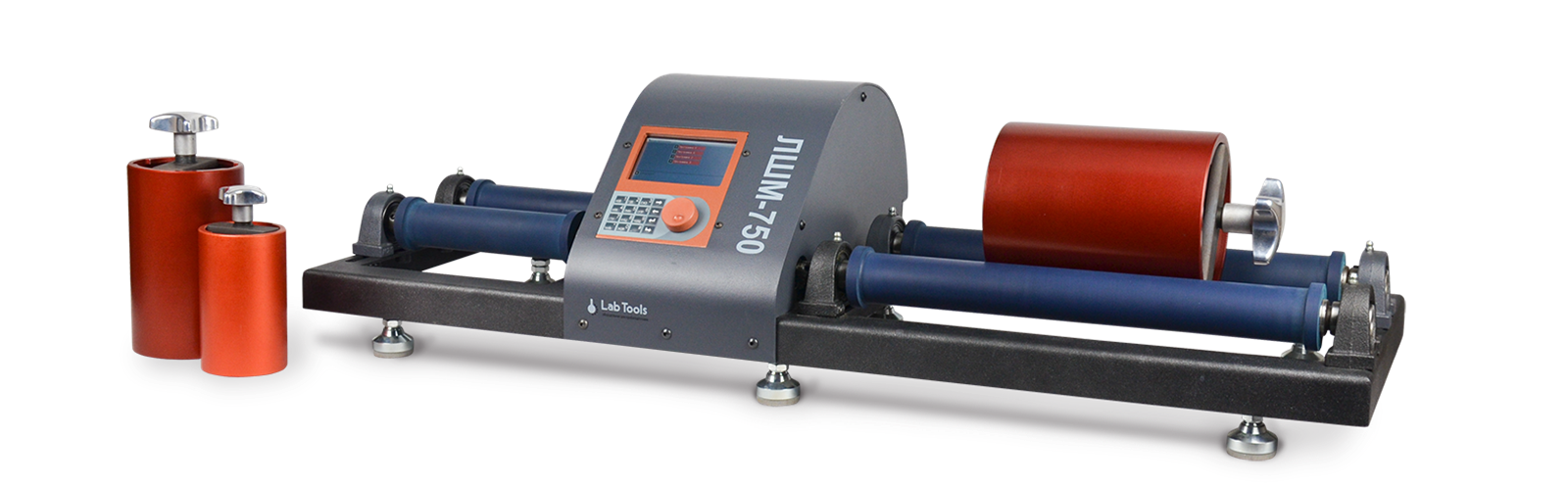

LSHM-750 Laboratory Ball Mill
Designation and purpose
Laboratory ball mill LSHM-750 is designed to grind and mix various materials, such as ores, rocks, slag, sludge, soils, metal oxides, minerals, electronic components waste, catalysts, various chemical products, etc.
It is specially designed for the equipment of industrial analytical and research laboratories.
The mill has two pairs of shafts for installing bowls with grinding bodies. It can be equipped with different grinding sets (supplied separately).
Advantages
- Reliable power frame and suspension provide minimal vibration.
- Two pairs of independently programmable shafts by the time and speed.
- Possibility of programming the time for changing the direction of rotation.
- Various grinding sets that do not add their material provide an “uninfected” sample.
- The correct geometry of the grinding bowls of our production guarantees the safety of work at high angular speeds.
Technical specifications
| Grinding principle | Friction |
| Shafts dimensions (maximum length of grinding wheels installed) | d45 mm, length 170 mm, 370 mm |
| Display | diagonal 4.3 inches, 480x272 pixels |
| Speed range* | 100–750 rev / min |
| Time setting | up to 24 hours (step — 1 minute) |
| Drives | two 60 W electric motors with fourfold reduction |
| Weight of installed bowls | up to 12 kg |
| Programming | keyboard + encoder (press, rotate), 16 editable programs |
| Supply network | single phase, 220 V, 50 Hz |
| Power consumption | 300 W |
| Overall dimensions (Width x Depth x Height) | 1000x325x265 mm |
| Mass | 35 kg |
* The lower limit of the speed range can be changed.
