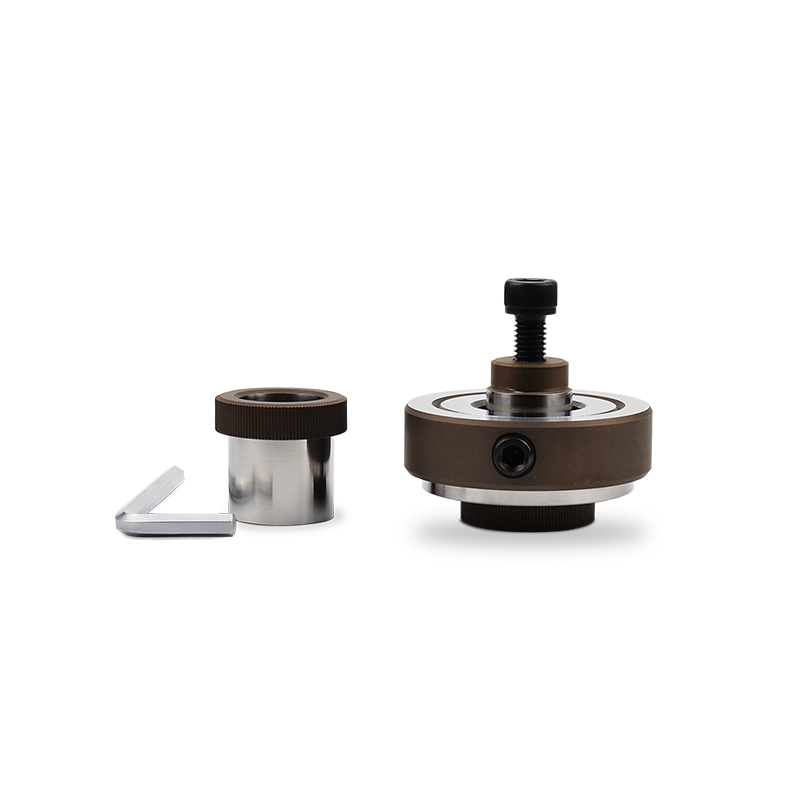

Die sets for the samples in the ring shape

Designation and usage

Die sets are designed to produce the samples in the form of rings. These die sets are often used in powder metallurgy, when it is necessary before sintering, to obtain a sample in the form of a ring.

Advantages

• Made of durable tool steel. Hardness 60 HRC.
• Work surface grinding (Ra0.08) provides an ideal sample surface and eliminates sample sticking on the ends of the punches.
• Die sets can be made with a collapsible matrix for comfortable sample extraction.

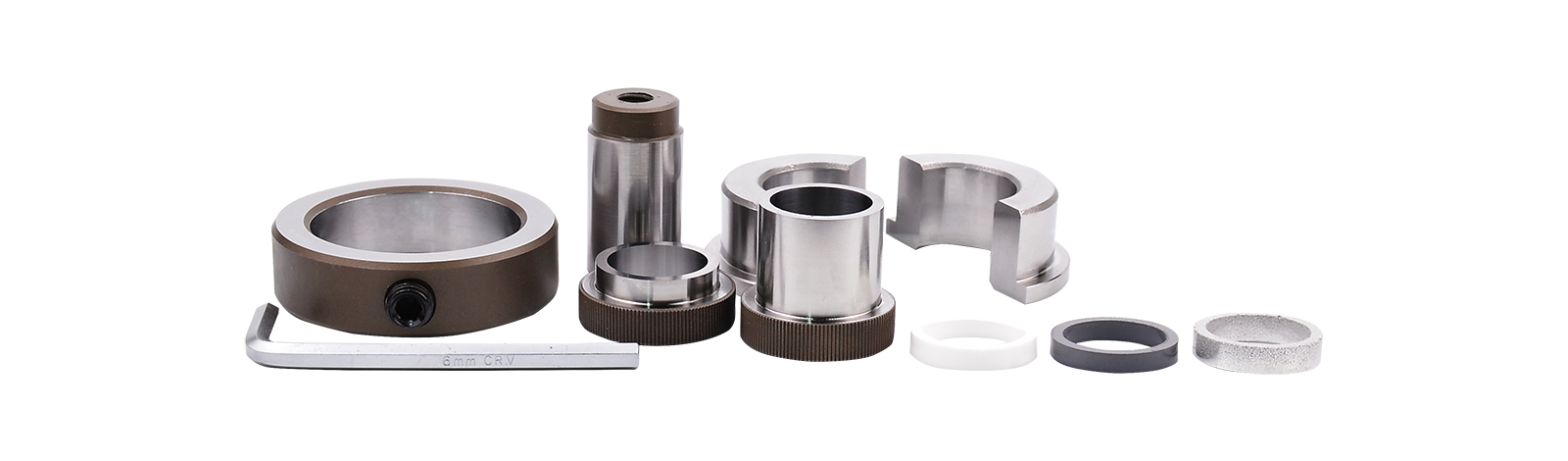

Supply package

• collapsible matrix (two symmetrical parts);
• general matrix (with not collapsible design);
• ring-shaped stopper;
• ring-shaped punch;
• core;
• binding ring arbor with clamping screw;
• ring for sample extraction (with not collapsible design);
• instruction manual.
